1436806
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

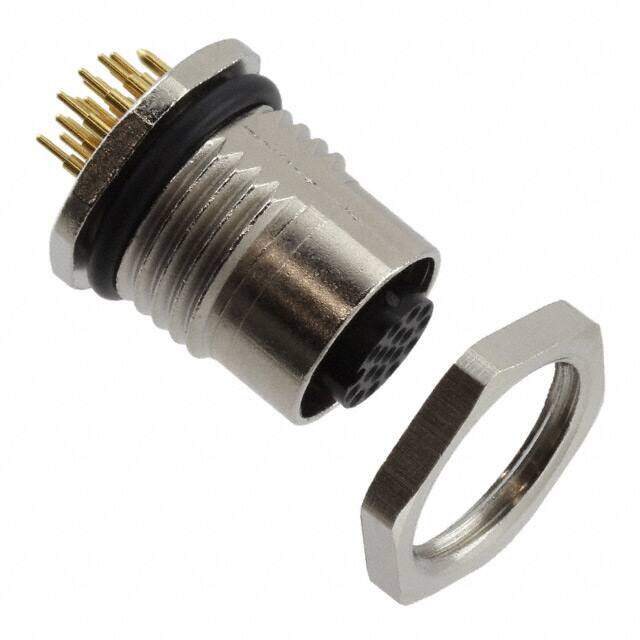

Circular Metric Connectors 17P FEMALE STRAIGHT SHIELDED
PDF
/
Buying Options
Total Price: USD $50.68
Unit Price: USD $50.6792
≥1 USD $50.6792
≥10 USD $46.62592
≥100 USD $43.078288
≥500 USD $41.050944
Inventory: 206
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2012
Series DSI
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 17
Color Silver
Voltage - Rated 30V
HTS Code 8536.69.40.20
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M12-17
Contact Gender Female
Max Current Rating 1.5A
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
Alternative Model
