RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors

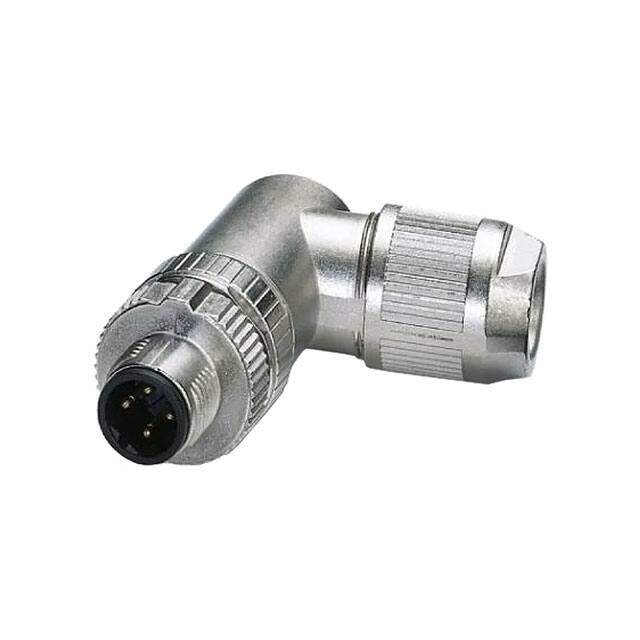

Description Circular Metric Connectors SACC-MRD-4SC SH PN SCO
PDF
/
Inventory: 1174
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Copper Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Angled
Shell Material Zinc Die Cast
Housing Material Zinc
Insert Material Thermoplastic Polyurethane (TPU)
Backshell Material, Plating Zinc Die Cast, Nickel

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series SACC
JESD-609 Code e4
Feature Backshell
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring-Cage
Connector Type Plug, Male Pins
Number of Positions 4
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation D
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Contact Gender Male
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
