1436628
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

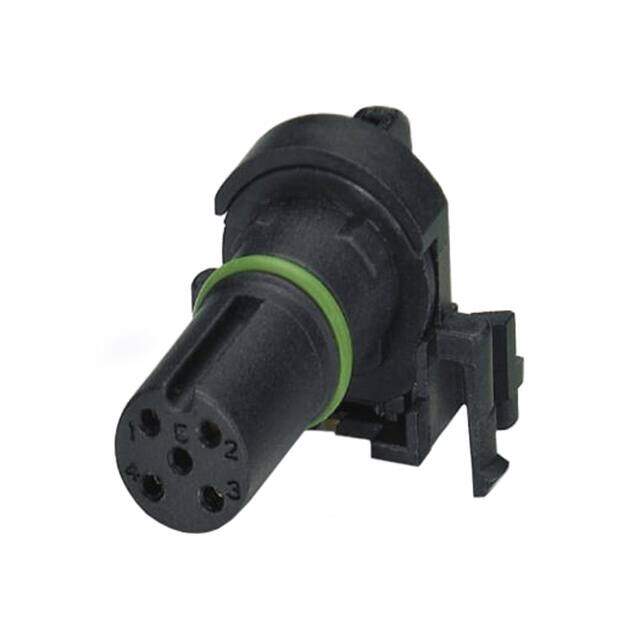

Circular Metric Connectors SACC-CI-M12FS-4CON- L90 SCO
PDF
/
Buying Options
Total Price: USD $11.85
Unit Price: USD $11.85398
≥1 USD $11.85398
≥10 USD $11.183
≥100 USD $10.55
Inventory: 472
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Zinc
Mounting Type Through Hole, Right Angle
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 4
Voltage - Rated 250V
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Contact Gender Female
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
