1436550
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

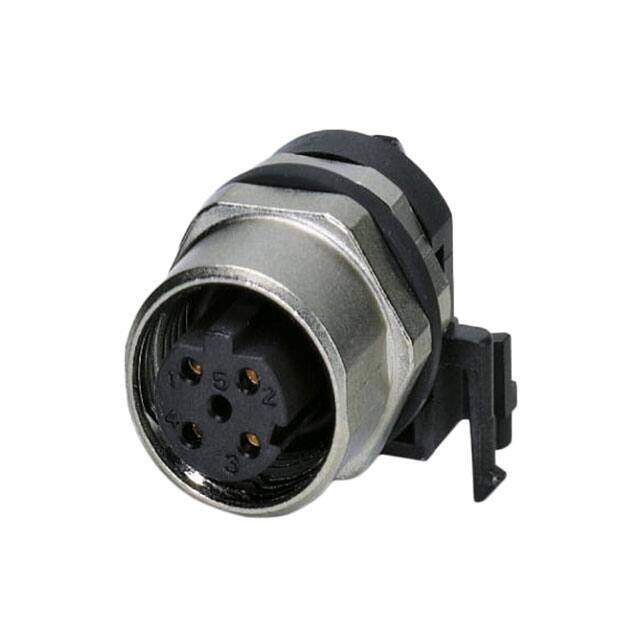

Circular Metric Connectors FEMALE 4P D-CODED
PDF
/
Buying Options
Total Price: USD $21.26
Unit Price: USD $21.2608
≥1 USD $21.2608
≥10 USD $19.55712
≥100 USD $18.068688
≥500 USD $17.218432
≥1000 USD $17.12392
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Number of Ports 1
Environmental Characteristics ENVIRONMENT RESISTANT
Body/Shell Style PLUG
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation D
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Fastening Type Push-Twist
Gender Receptacle
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Board Lock
JESD-609 Code e4
Series DSIV
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 3 Weeks
