1436440
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

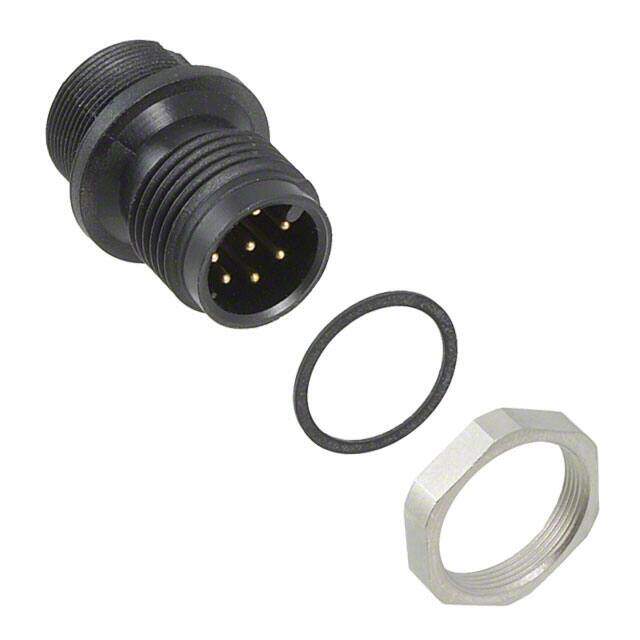

Circular Metric Connectors SACC-M12MS-8CON-M12S 8P MALE M12 SOLDER
PDF
/
Buying Options
Total Price: USD $16.88
Unit Price: USD $16.8784
≥1 USD $16.8784
≥10 USD $16.41464
≥100 USD $15.34104
≥500 USD $14.113792
≥1000 USD $13.039946
≥3000 USD $12.426269
Inventory: 73
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Number of Ports 1
Max Current Rating 2A
Body/Shell Style SOCKET
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-8
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30V
Color Black
Number of Positions 8
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Cable, Panel, Rear Side Nut
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
