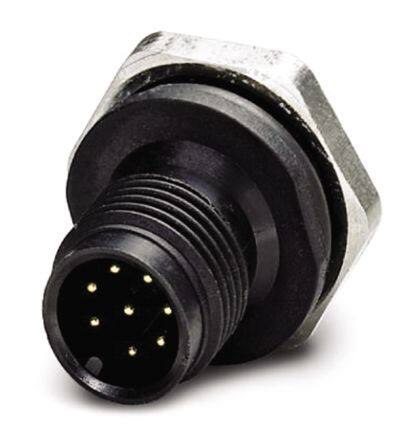

1436408
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
SACC RoHS Compliant Dust Tight IP67Waterproof 2011 Circular Connector -25C~85C 2A 30V
PDF
/
Buying Options
Total Price: USD $19.73
Unit Price: USD $19.733995
≥1 USD $19.733995
≥10 USD $18.616972
≥100 USD $17.563185
≥500 USD $16.569039
≥1000 USD $15.631179
Inventory: 3388
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Number of Ports 1
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-8
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 8
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30V
Color Black
Number of Positions 8
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Cable, Panel, Rear Side Nut
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
