Package /
Category Connectors, Interconnects / Circular Connectors

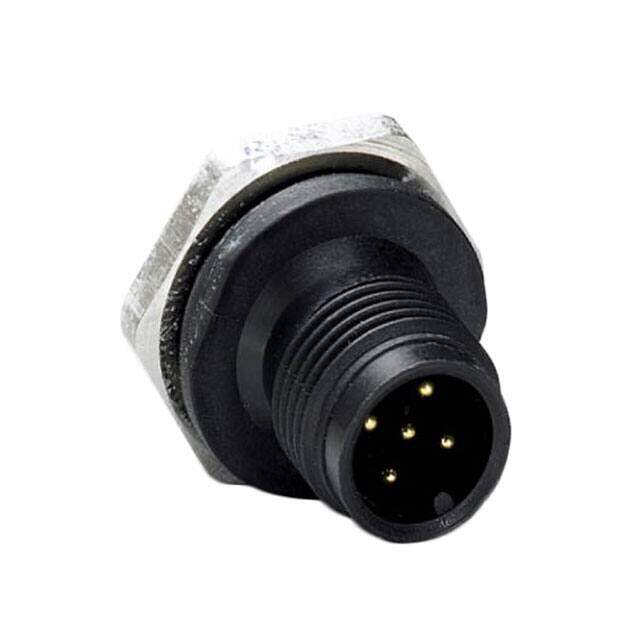

Description Circular Metric Connectors SACC-M12MS-5CON-M16S 5P MALE M16 SOLDER
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.724
≥1 USD $9.724
≥10 USD $8.94784
≥100 USD $8.266896
≥500 USD $7.877848
≥1000 USD $7.83464
Inventory: 47
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Technical

Thread Size M12
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-5
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Gender Female
Color Black
Number of Positions 5
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front, Panel, Rear Side Nut, Screw
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 7 Weeks
