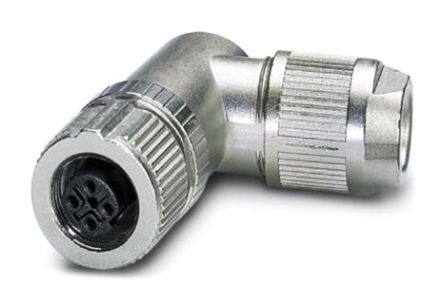

1432871 image
Favorite
1432871 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-FRB-2SC SH PB SCO
PDF
/
Inventory: 1257
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-2
Contact Gender Female
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Shielding Shielded
Orientation B
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell, Coupling Nut
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Metal
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Angled
Mount Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 5 Weeks
