1432813
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

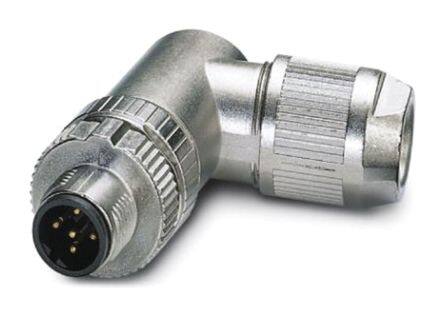

Circular Metric Connectors SACC-MRB-5SC SH IB SCO
PDF
/
Inventory: 1221
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Angled
Shell Material Zinc Die Cast
Housing Material Metal
Insert Material Thermoplastic Polyurethane (TPU)
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
Feature Backshell
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring-Cage
Connector Type Plug, Male Pins
Number of Positions 5
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation B
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Male
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
