1432790
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

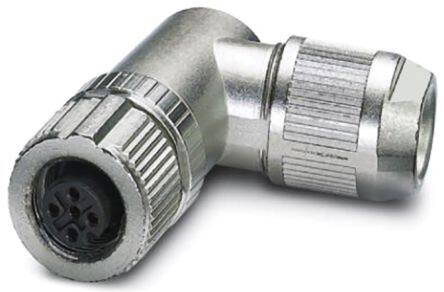

Circular Metric Connectors SACC-FR-5SC SH DN SCO
PDF
/
Inventory: 1249
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 48mm
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Max Current Rating 4A
Contact Gender Female
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Depth 41mm
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell, Coupling Nut
Series CANopen?/DeviceNet?
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Metal
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Angled
Mount Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
