RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors

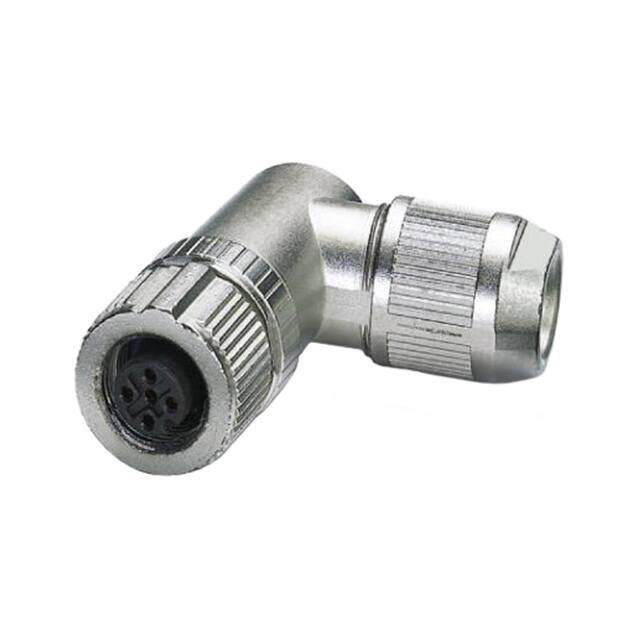

Description Circular Metric Connectors SACC-FR-4SC SH SCO
PDF
/
Inventory: 1163
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP65, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Number of Ports 1
Plating Brass
Max Current Rating 4A
Contact Gender Female
Approval Agency UL
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell, Coupling Nut
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Angled
Mount Cable, Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 3 Weeks
