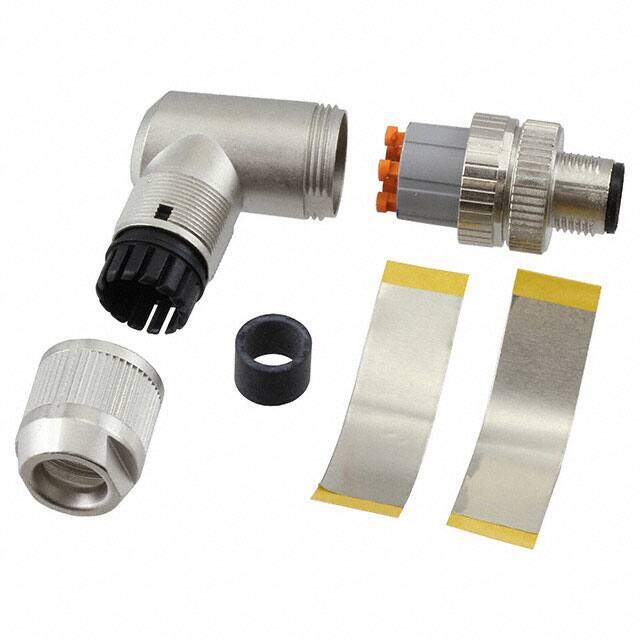

1432651 image
Favorite
1432651 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-MR-5SC SH SCO
PDF
/
Inventory: 1266
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Contact Gender Male
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell
Series SACC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Angled
Mount Cable, Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 3 Weeks
