1432648
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

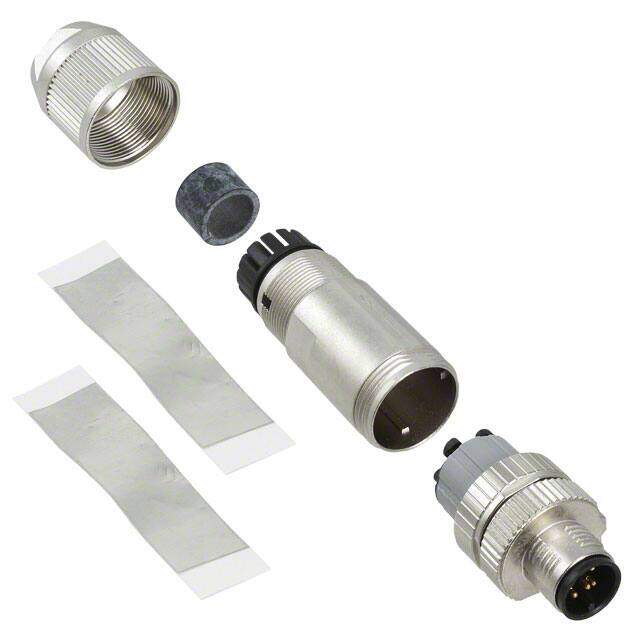

Circular Metric Connectors SACC-MS-5SC SH SCO
PDF
/
Inventory: 1255
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Number of Ports 1
Plating Brass
Max Current Rating 4A
Contact Gender Male
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Polyurethane
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 5 Weeks
