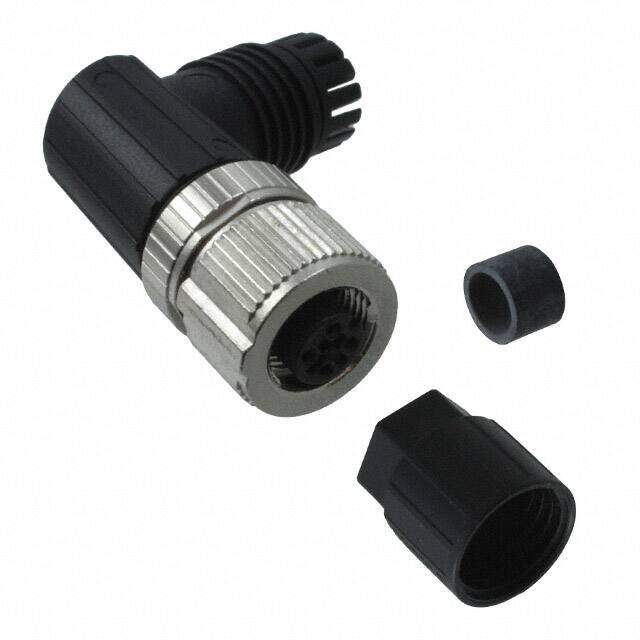

1432622 image
Favorite
1432622 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors SACC-FR-4SC M SCO
PDF
/
Buying Options
Total Price: USD $19.62
Unit Price: USD $19.62063
≥1 USD $19.62063
≥10 USD $18.510022
≥100 USD $17.462297
≥500 USD $16.473864
≥1000 USD $15.541374
Inventory: 2102
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP65, IP67
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire/Cable Diameter 8 mm
Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Contact Gender Female
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 250V
Gender Male
Color Black, Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell, Coupling Nut
Series SACC
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Polyamide
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Angled
Mount Cable, Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 5 Weeks
