1432583
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

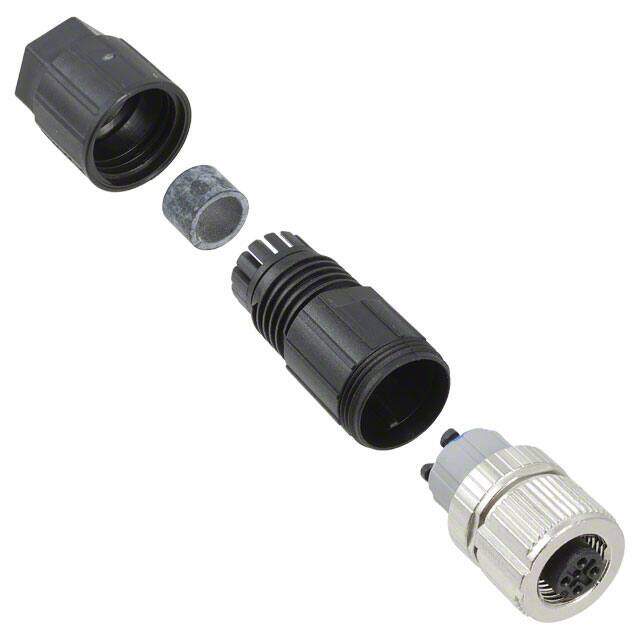

Circular Metric Connectors SACC-FS-5SC M SCO
PDF
/
Buying Options
Total Price: USD $22.5
Unit Price: USD $22.502959
≥1 USD $22.502959
≥10 USD $21.229208
≥100 USD $20.027549
≥500 USD $18.893919
≥1000 USD $17.824455
Inventory: 7773
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire/Cable Diameter 8 mm
Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Number of Ports 1
Plating Brass
Max Current Rating 4A
Contact Gender Female
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 60V
Gender Male
Color Black, Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Polyamide
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 5 Weeks
