RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors

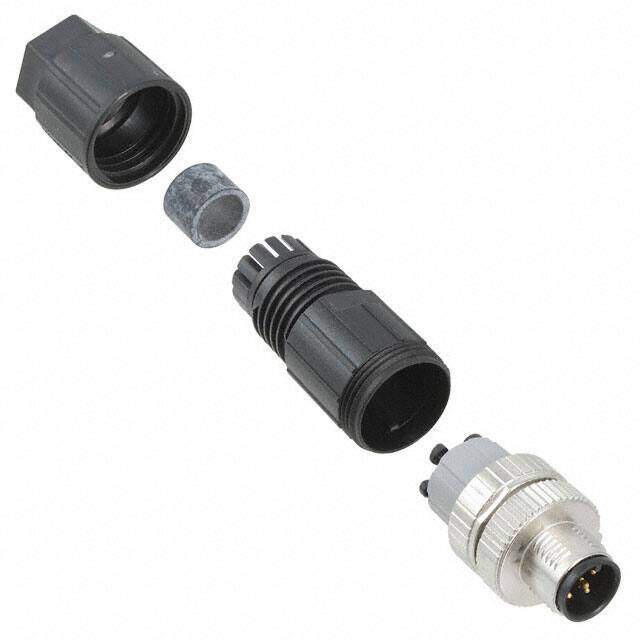

Description Circular Metric Connectors SACC-MS-5SC M SCO
PDF
/
Inventory: 1572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP65, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Contact Gender Male
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 60V
Color Black, Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Thermoplastic Polyurethane (TPU)
Housing Material Polyurethane
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Tin

Supply Chain

Factory Lead Time 5 Weeks
