1432444
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

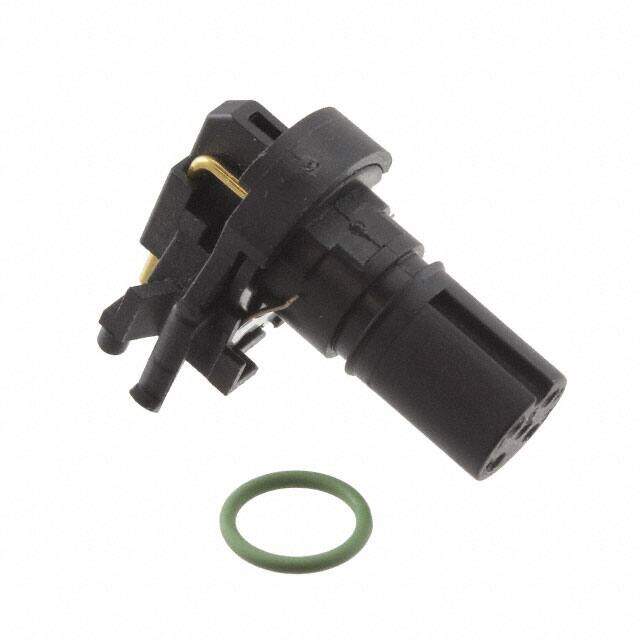

Circular connector; Insert; Female Sockets; 4 position; 4A; 250V
PDF
/
Buying Options
Total Price: USD $13.7
Unit Price: USD $13.69788
≥1 USD $13.69788
≥10 USD $12.92252
≥100 USD $12.19106
≥500 USD $11.501
≥1000 USD $10.85
Inventory: 1650
Minimum: 1
-
+
Technical Details
Technical
Voltage - Rated 250V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Empty Shell NO
Backshell Type SOLID
Thread Size M12
Number of Positions 4
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Insert Only, Requires Shell
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -25°C~85°C
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Mounting Type Through Hole, Right Angle
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
