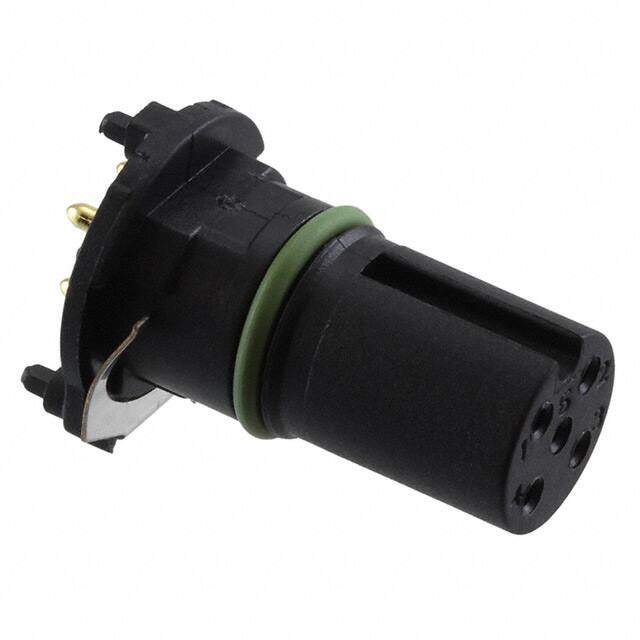

1432363 image
Favorite
1432363 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular connector; Insert; Female Sockets; 5 position; 4A; 60V
PDF
/
Buying Options
Total Price: USD $6.91
Unit Price: USD $6.91014
≥1 USD $6.91014
≥10 USD $6.519
≥100 USD $6.15
Inventory: 441
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 60V
Gender Male
Number of Positions 5
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Published 2011
Packaging Tray
Operating Temperature -25°C~85°C

Physical

Insert Material Polyphthalamide (PPA)
Mounting Type Through Hole
Mount Cable, Through Hole
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
