1430433
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

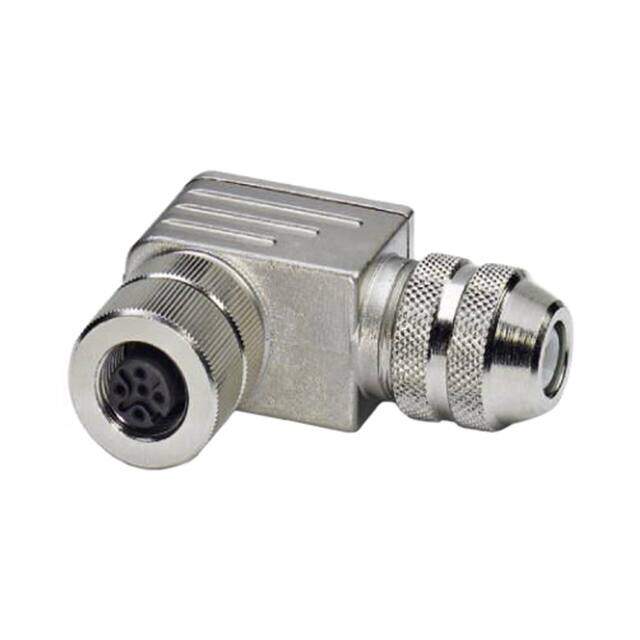

Circular Metric Connectors SACC-M12FR-5CON- PG 9-SH
PDF
/
Buying Options
Total Price: USD $27.86
Unit Price: USD $27.8608
≥1 USD $27.8608
≥10 USD $25.63352
≥100 USD $23.683264
≥500 USD $22.568744
≥1000 USD $22.444858
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Housing Material Metal
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Gender Receptacle
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Number of Ports 1
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
