1429156
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

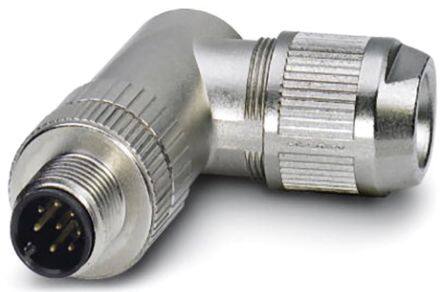

CONN PLUG 6POS INLINE PIN ANGLED
PDF
/
Inventory: 1196
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-6
Shell Finish Nickel
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 6
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30V
Color Silver
Number of Positions 6
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Metal
Shell Material Brass
Mounting Type Free Hanging (In-Line), Angled
Mount Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 5 Weeks
