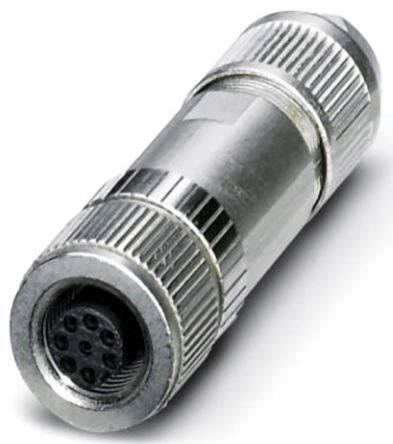

1429143
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 6POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $39.96
Unit Price: USD $39.9608
≥1 USD $39.9608
≥10 USD $36.76728
≥100 USD $33.96976
≥500 USD $32.371152
≥1000 USD $32.193498
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-6
Shell Finish Nickel
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 6
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30V
Color Silver
Number of Positions 6
Connector Type Receptacle, Female Sockets
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Metal
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 5 Weeks
