1424694
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

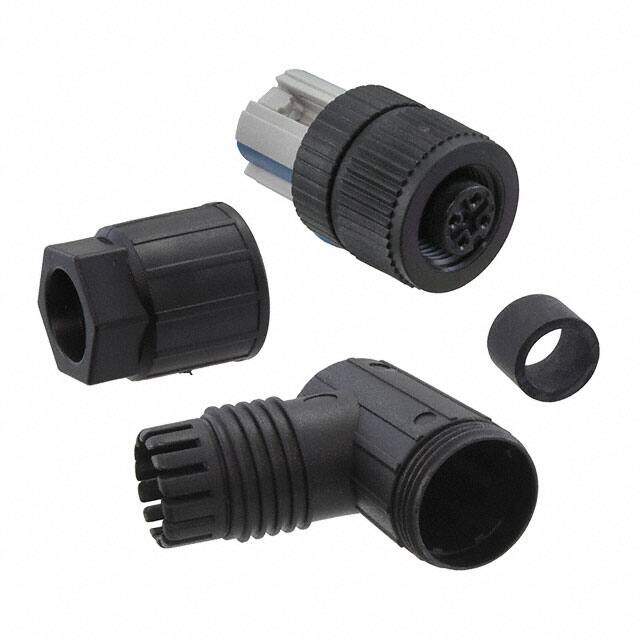

CONN 4POS SKT ANGLED M12
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.3256
≥1 USD $11.3256
≥10 USD $10.4192
≥100 USD $9.626848
≥500 USD $9.173736
≥1000 USD $9.123418
Inventory: 44
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mounting Type Free Hanging (In-Line), Angled
Shell Material Plastic
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SACC
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring-Cage
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black
Gender Receptacle
Voltage - Rated 250VAC/DC
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-4
Current Rating 4A
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
