1424691
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

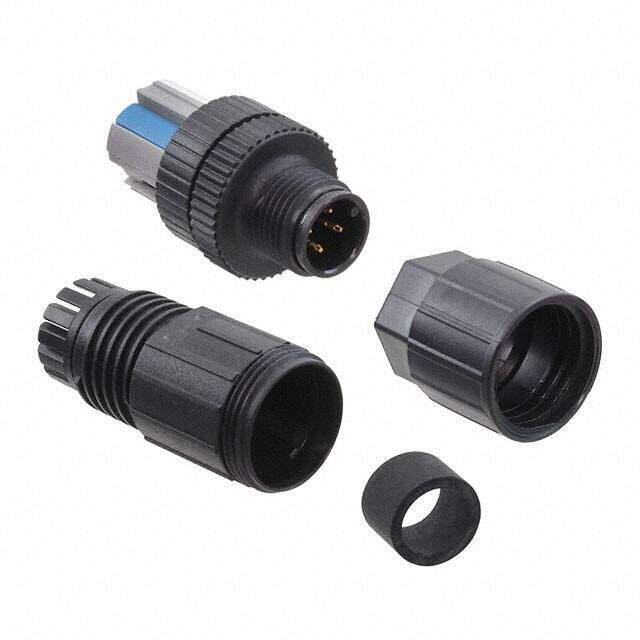

CONN 4POS PLUG STRAIGHT M12
PDF
/
Buying Options
Total Price: USD $11.18
Unit Price: USD $11.175691
≥1 USD $11.175691
≥10 USD $10.543105
≥100 USD $9.946324
≥500 USD $9.383324
≥1000 USD $8.852197
Inventory: 2516
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Fastening Type Threaded
Voltage - Rated 250VAC/DC
Color Black
Number of Positions 4
Connector Type Plug, Male Pins
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Plastic
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin
Supply Chain
Factory Lead Time 7 Weeks
