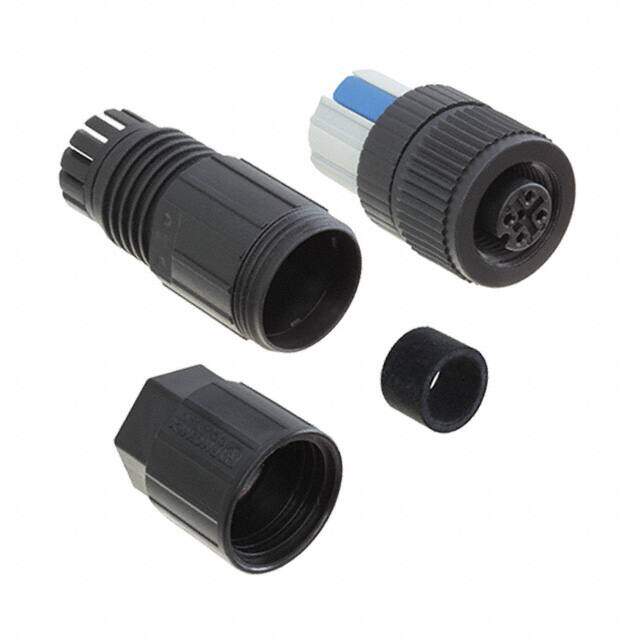

1424689
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN 5POS SKT STRAIGHT M12
PDF
/
Buying Options
Total Price: USD $12.57
Unit Price: USD $12.571929
≥1 USD $12.571929
≥10 USD $11.860308
≥100 USD $11.188971
≥500 USD $10.555637
≥1000 USD $9.958143
Inventory: 2503
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Black
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Push In, Spring
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Plastic
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
