RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors

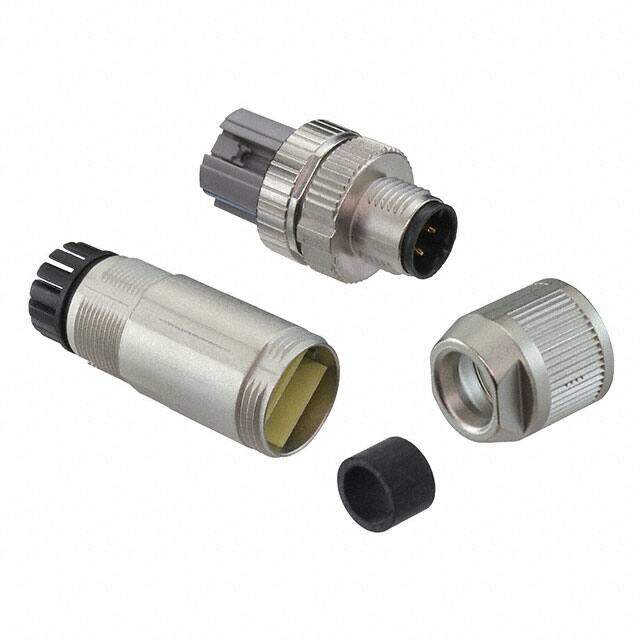

Description CONN PROFINET 4POS PLUG STRAIGHT
PDF
/
Buying Options
Total Price: USD $22.69
Unit Price: USD $22.6864
≥1 USD $22.6864
≥10 USD $20.86832
≥100 USD $19.280448
≥500 USD $18.373168
≥1000 USD $18.27232
Inventory: 231
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation D
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Applications Data Management
Color Silver
Number of Positions 4
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series SACC
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin

Supply Chain

Factory Lead Time 4 Weeks
