1424672
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

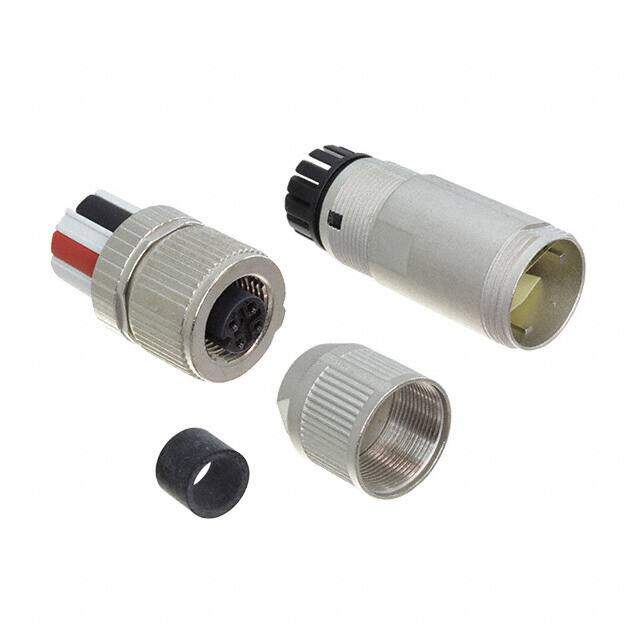

BUS SYSTEM CONN 5POS SHIELDED SK
PDF
/
Buying Options
Total Price: USD $26.32
Unit Price: USD $26.3208
≥1 USD $26.3208
≥10 USD $24.2132
≥100 USD $22.37048
≥500 USD $21.317736
≥1000 USD $21.200749
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Applications Data Management
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
