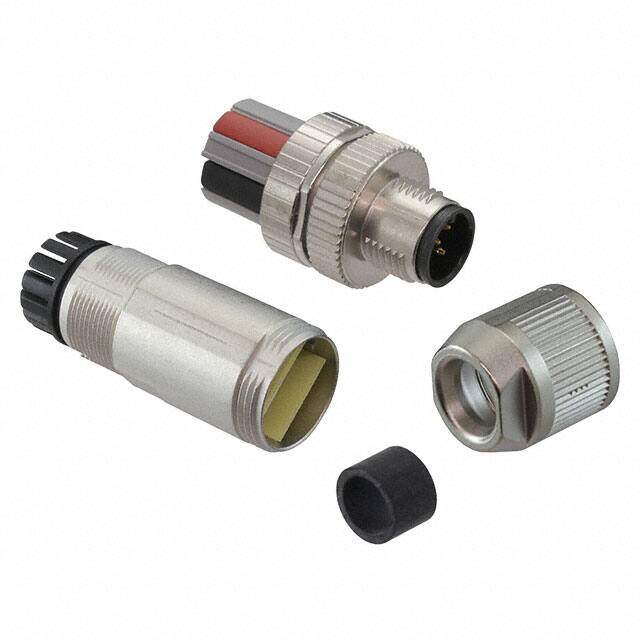

1424670
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
BUS SYSTEM CONN 5POS PLUG STRAIG
PDF
/
Buying Options
Total Price: USD $26.06
Unit Price: USD $26.0568
≥1 USD $26.0568
≥10 USD $23.97208
≥100 USD $22.148368
≥500 USD $21.106096
≥1000 USD $20.990182
Inventory: 50
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SACC
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring-Cage
Connector Type Plug, Male Pins
Number of Positions 5
Color Silver
Applications Data Management
Voltage - Rated 48VAC 60VDC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation A
Shielding Shielded
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
