1424651
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

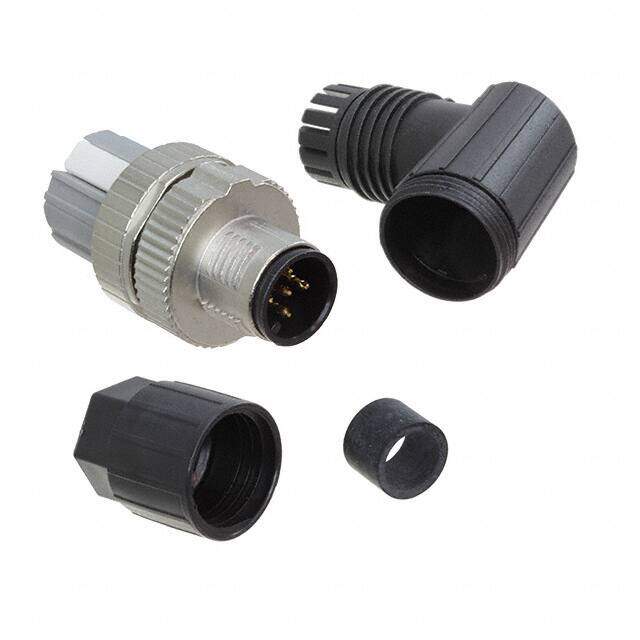

CONN 5POS PLUG ANGLED M12
PDF
/
Buying Options
Total Price: USD $11.22
Unit Price: USD $11.22
≥1 USD $11.22
Inventory: 179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Tin
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Housing Material Plastic
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SACC
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring-Cage
Connector Type Plug, Male Pins
Number of Positions 5
Color Black, Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Push-Twist
Voltage - Rated DC 60V
Contact Finish - Mating Gold
Orientation A
Shielding Unshielded
Ingress Protection IP68/69 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-5
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
