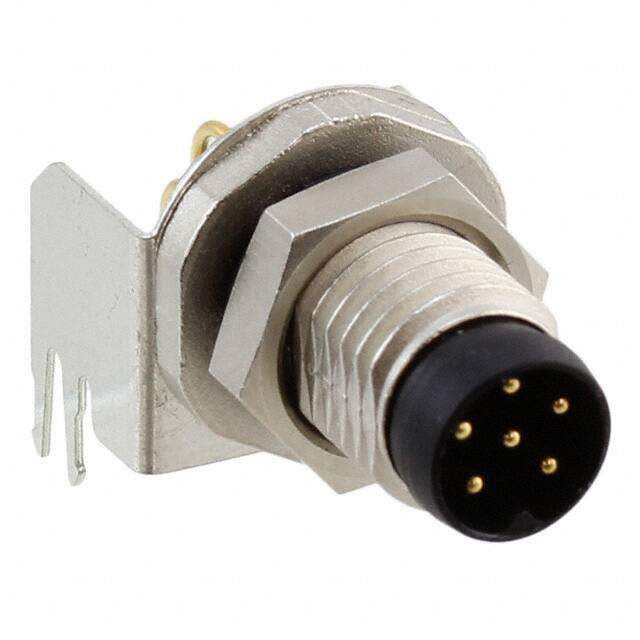

1424244
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Conn M8 Circular PIN 6 POS Solder RA Thru-Hole 6 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $34.47
Unit Price: USD $34.4696
≥1 USD $34.4696
≥10 USD $31.7108
≥100 USD $29.29784
≥500 USD $27.919056
≥1000 USD $27.76576
Inventory: 325
Minimum: 1
-
+
Technical Details
Physical
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Housing Material Zinc
Weight 6.000006g
Insert Material Polyamide (PA66), Nylon 6/6
Contact Material Copper Alloy
Technical
Packaging Bulk
Published 2013
Series DSI
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 6
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Current Rating (Amps) 2A
Total Number of Contacts 6
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M8-6
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Thread Size M8
Supply Chain
Factory Lead Time 7 Weeks
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
