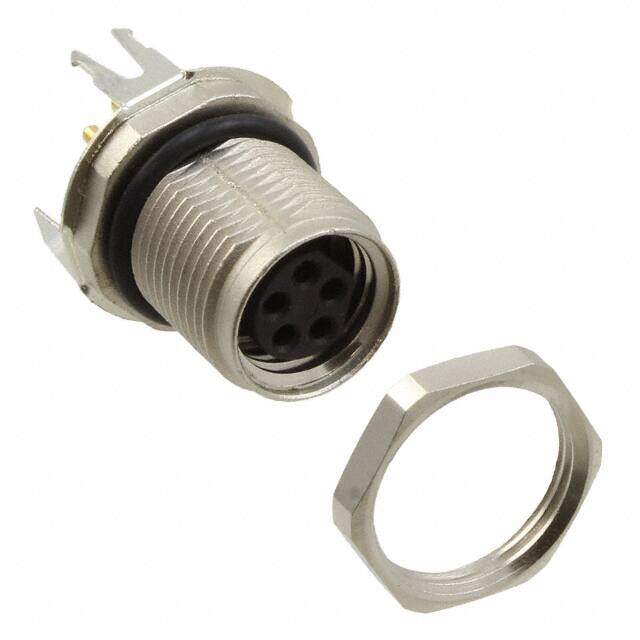

1424241 image
Favorite
1424241 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 5POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $17.65
Unit Price: USD $17.6528
≥1 USD $17.6528
≥10 USD $16.24128
≥100 USD $15.00576
≥500 USD $14.29956
≥1000 USD $14.221011
Inventory: 1455
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Mount Bulkhead, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series DSI
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation B
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 3A
Shell Finish Nickel
Shell Size - Insert M8-5
Contact Gender Female
Thread Size M8
Ambient Temperature Range High 85°C

Dimensions

Height 15mm

Compliance

Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
