1424237
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

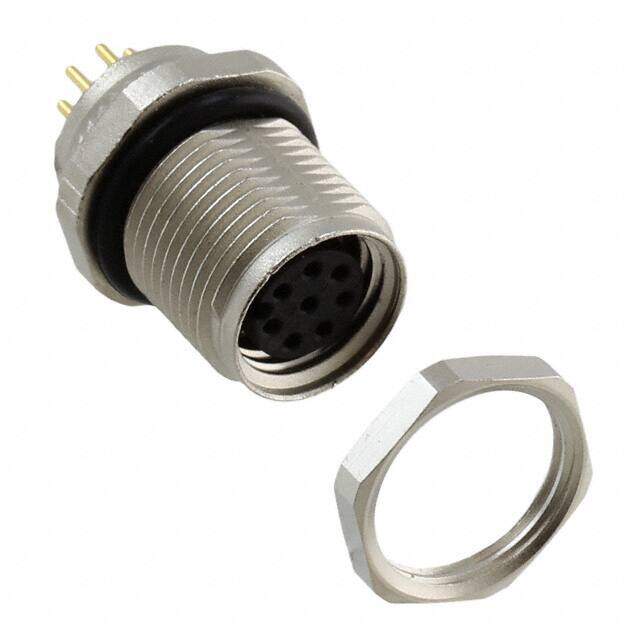

Circular Metric Connectors SACC-DSI-M8FS 8CON-M10-L180
PDF
/
Buying Options
Total Price: USD $25.24
Unit Price: USD $25.2384
≥1 USD $25.2384
≥10 USD $23.22144
≥100 USD $21.454928
≥500 USD $20.445304
≥1000 USD $20.333069
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Tin
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Die Cast
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series DSI
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1.5A
Shell Finish Nickel
Shell Size - Insert M8-8
Contact Gender Female
Thread Size M8
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
