1424235
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

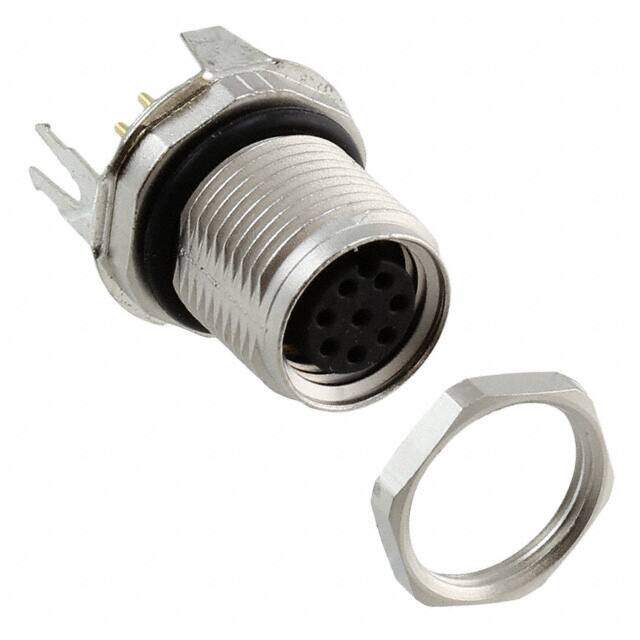

Circular Metric Connectors SACC-DSI-M8FS 8CON-M10-L180 SH
PDF
/
Buying Options
Total Price: USD $21.65
Unit Price: USD $21.648
≥1 USD $21.648
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Contact Gender Female
Shell Size - Insert M8-8
Shell Finish Nickel
Current Rating 1.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Color Silver
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series DSI
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
