1424197
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

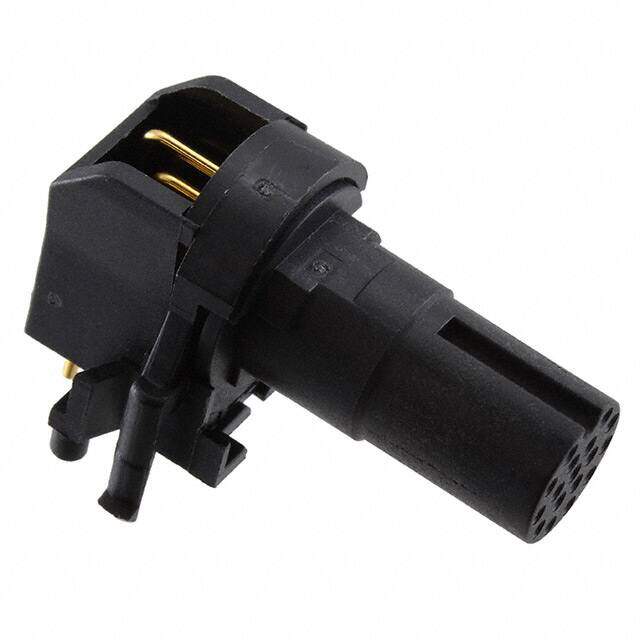

CONN FMALE INSERT 17POS SOLDER
PDF
/
Buying Options
Total Price: USD $32.11
Unit Price: USD $32.11249
≥1 USD $32.11249
≥10 USD $30.2948
≥100 USD $28.58
Inventory: 476
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-17
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 17
Current Rating (Amps) 1.5A
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
HTS Code 8536.69.40.20
Voltage - Rated 30V
Number of Positions 17
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Series SACC
Published 2015
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA6T), Nylon 6/T
Mounting Type Panel Mount, Through Hole, Right Angle
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 9 Weeks
