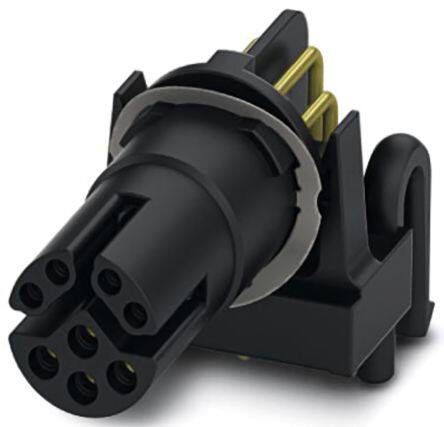

1424193
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular connector; Insert; Female Sockets; 8 (4 + 4 Power) pos; 0.5A; 6A; 48VAC
PDF
/
Buying Options
Total Price: USD $43.63
Unit Price: USD $43.6304
≥1 USD $43.6304
≥10 USD $42.43976
≥100 USD $39.663536
≥500 USD $36.490432
≥1000 USD $33.713962
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Zinc
Mounting Type Panel Mount, Through Hole, Right Angle
Number of Pins 8
Shell Material PPA
Housing Material Polyphthalamide
Insert Material Polyphthalamide (PPA)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Board Guide, Board Lock, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 8 (4 Data + 4 Power)
Voltage - Rated 48VAC 50VDC
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A 6A
Total Number of Contacts 8
Orientation Y
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 6A
Shell Size - Insert M12-8
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Coupling Type SNAP
Thread Size M12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
