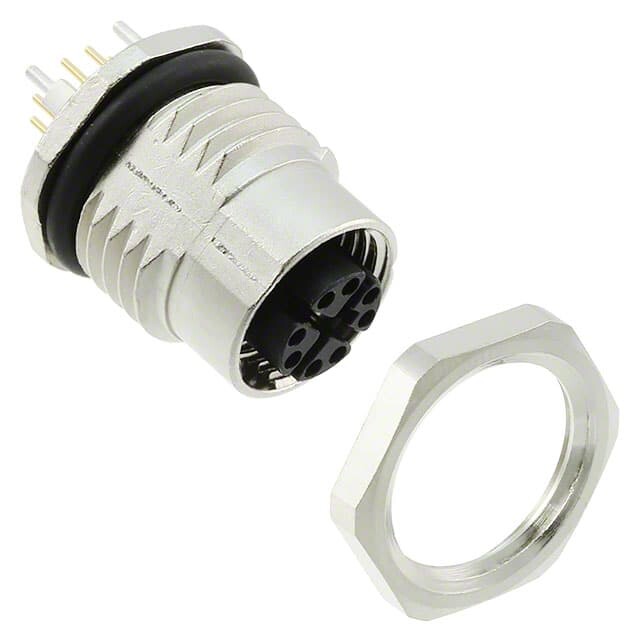

1424177
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 8POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $34.14
Unit Price: USD $34.144
≥1 USD $34.144
≥10 USD $33.2112
≥100 USD $31.038656
≥500 USD $28.555472
≥1000 USD $26.382787
Inventory: 852
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Housing Material Zinc
Insert Material Polyphthalamide (PPA)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series DSI
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 8 (Data)
Color Silver
Gender Receptacle
Voltage - Rated 50VAC 60VDC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 0.5A
Orientation X
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 500mA
Shell Size - Insert M12-8
Number of Contacts 8
Contact Gender Female
Thread Size M12
Wire/Cable Diameter 6 mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
