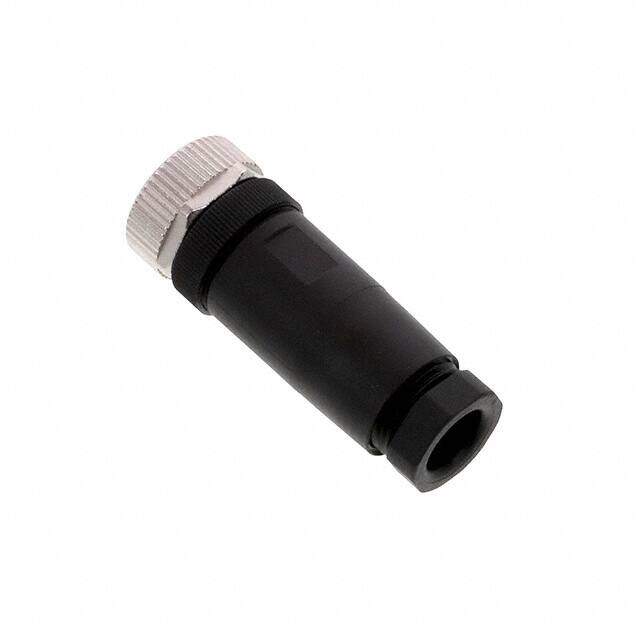

1419640
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 3POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $25.51
Unit Price: USD $25.512688
≥1 USD $25.512688
≥10 USD $24.068574
≥100 USD $22.706201
≥500 USD $21.420943
≥1000 USD $20.208441
Inventory: 6561
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Shell Size - Insert M12-3
Shell Finish Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation S
Current Rating (Amps) 16A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 230VAC
Color Black, Silver
Number of Positions 3 (Power)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2016
Packaging Bulk
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
