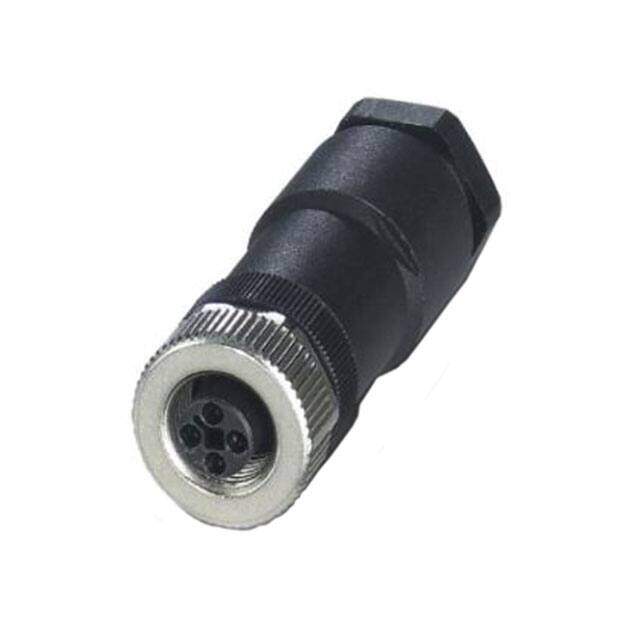

1418052
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 4POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $26.72
Unit Price: USD $26.7168
≥1 USD $26.7168
≥10 USD $24.57752
≥100 USD $22.707168
≥500 USD $21.638496
≥1000 USD $21.519731
Inventory: 26
Minimum: 1
-
+
Technical Details
Technical
Fastening Type Threaded
Voltage - Rated 63VDC
Color Black, Silver
Number of Positions 4 (Power)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2016
Packaging Bulk
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-4
Shell Finish Nickel
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation T
Total Number of Contacts 4
Current Rating (Amps) 12A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
