1417443
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

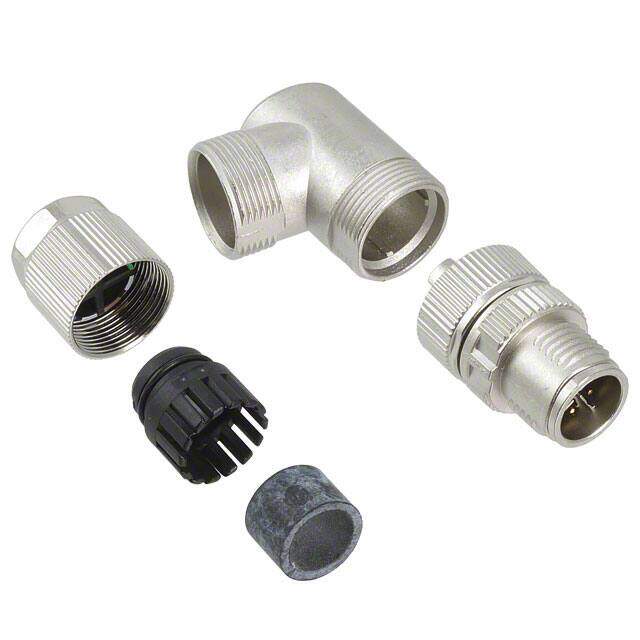

Circular Metric Connectors VS-08-M12MR- 10G-P SCO
PDF
/
Buying Options
Total Price: USD $51.32
Unit Price: USD $51.320395
≥1 USD $51.320395
≥10 USD $48.415466
≥100 USD $45.674966
≥500 USD $43.089591
≥1000 USD $40.650559
Inventory: 4552
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Contact Gender Male
Shell Size - Insert M12-8
Shell Finish Nickel
Current Rating 500mA
Reach Compliance Code not_compliant
Ingress Protection IP65 - Dust Tight, Water Resistant
Shielding Shielded
Orientation X
Current Rating (Amps) 0.5A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 50VAC 60VDC
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Axial Pierce
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series VS
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polypropylene (PP)
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Angled
Mount Cable, Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
