1417430
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

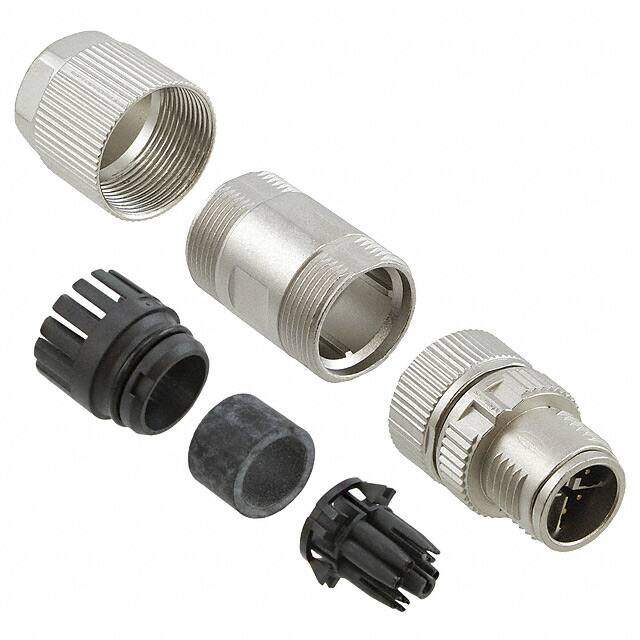

Circular Metric Connectors VS-08-M12MS- 10G-P SCO
PDF
/
Buying Options
Total Price: USD $51.48
Unit Price: USD $51.48
≥1 USD $51.48
≥10 USD $47.3616
≥100 USD $43.758176
≥500 USD $41.698888
Inventory: 85
Minimum: 1
-
+
Technical Details
Technical
Current Rating (Amps) 0.5A
Orientation X
Shielding Shielded
Ingress Protection IP65 - Dust Tight, Water Resistant
Reach Compliance Code not_compliant
Current Rating 500mA
Shell Finish Nickel
Shell Size - Insert M12-8
Contact Gender Male
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Thread Size M12
Wire/Cable Diameter 8 mm
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 50VAC 60VDC
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Axial Pierce
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series VS
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, IP67, Water Resistant
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polypropylene (PP)
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
