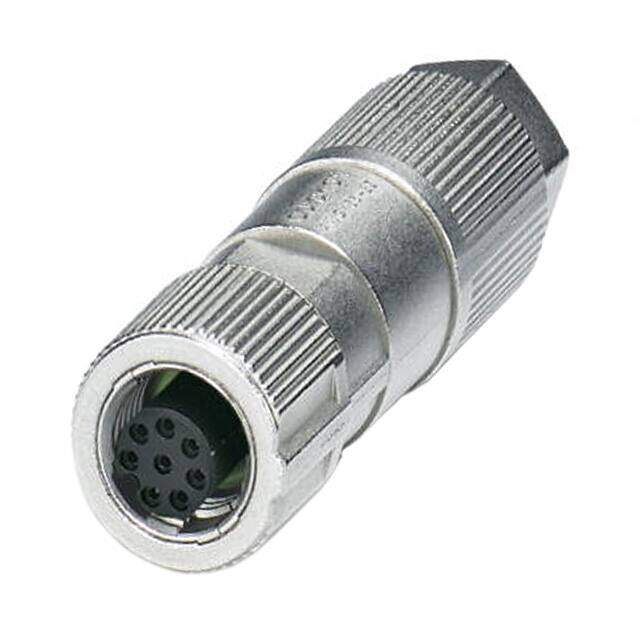

1414611
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 8POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $44.55
Unit Price: USD $44.5544
≥1 USD $44.5544
≥10 USD $40.986
≥100 USD $37.867632
≥500 USD $36.085632
≥1000 USD $35.887491
Inventory: 184
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Tin
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Metal
Insert Material Polyamide (PA66), Nylon 6/6
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SACC
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination IDC
Connector Type Receptacle, Female Sockets
Number of Positions 8
Color Silver
Voltage - Rated 30VAC/DC
Fastening Type Push-Twist
Contact Finish - Mating Gold
Current Rating (Amps) 2A
Orientation A
Shielding Shielded
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shell Finish Nickel
Shell Size - Insert M12-8
Cable Opening 0.197 ~ 0.382 (5.00mm ~ 9.70mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
