1414610
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

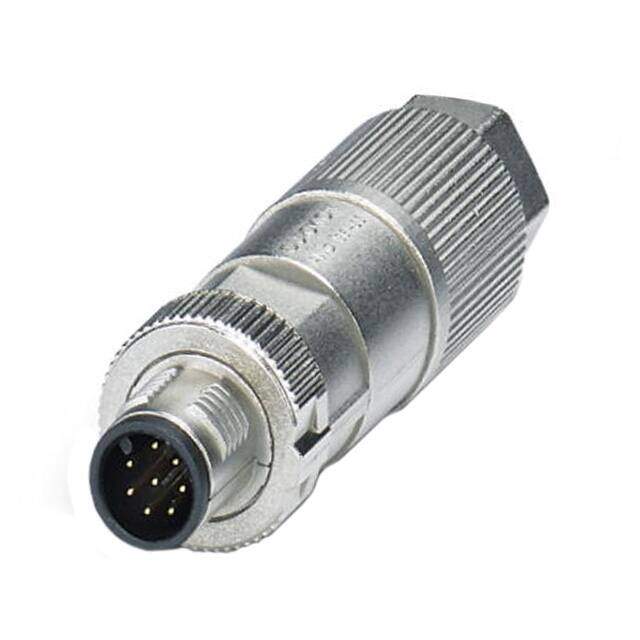

CONN PLUG MALE 8POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $42.72
Unit Price: USD $42.724
≥1 USD $42.724
≥10 USD $39.30256
≥100 USD $36.312496
≥500 USD $34.603712
≥1000 USD $34.413702
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.197 ~ 0.382 (5.00mm ~ 9.70mm)
Shell Size - Insert M12-8
Shell Finish Nickel
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Current Rating (Amps) 2A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30VAC/DC
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell
Series SACC
Packaging Bulk
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Metal
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
