1414586 image
Favorite
1414586 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

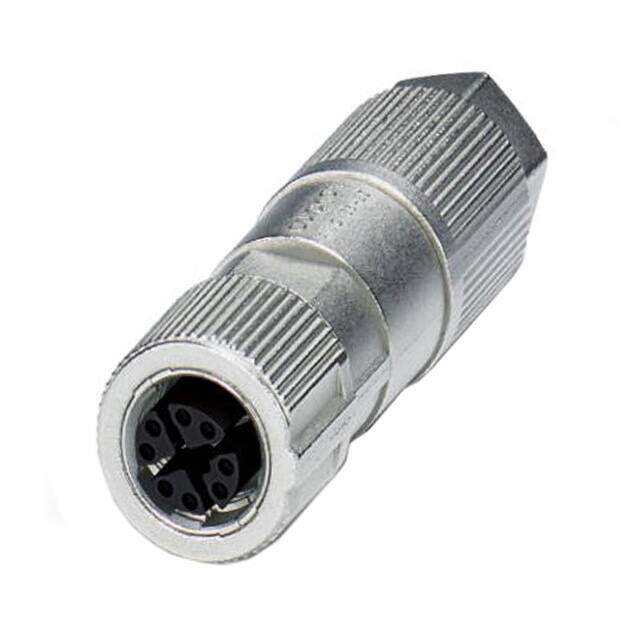

Description CONN RCPT FMALE 8POS GOLD IDC
PDF
/
Buying Options
Total Price: USD $67.94
Unit Price: USD $67.935167
≥1 USD $67.935167
≥10 USD $64.089782
≥100 USD $60.462053
≥500 USD $57.039676
≥1000 USD $53.811013
Inventory: 1600
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Cable Opening 0.197 ~ 0.382 (5.00mm ~ 9.70mm)
Shell Size - Insert M12-8
Shell Finish Nickel
Reach Compliance Code not_compliant
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation X
Current Rating (Amps) 0.5A
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 8
Connector Type Receptacle, Female Sockets
Termination IDC
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2018
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Metal
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Contact Material Copper Tin

Supply Chain

Factory Lead Time 4 Weeks
