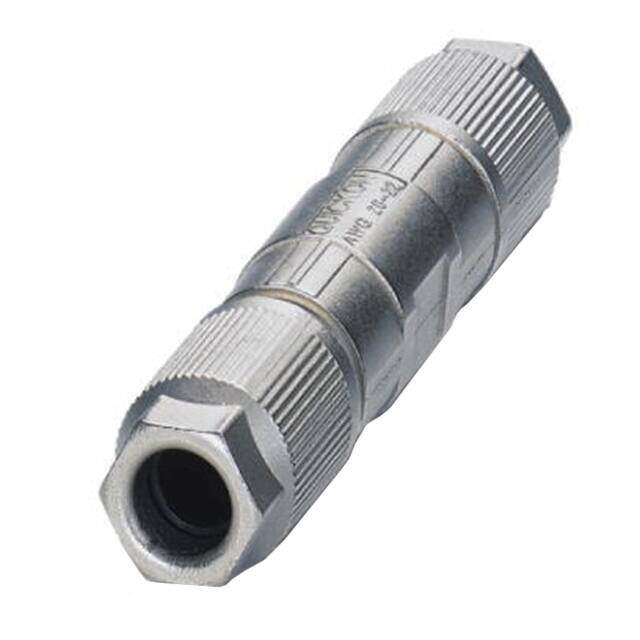

1414416
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Nickel SACC RoHS Compliant Dust Tight IP65Water Resistant Waterproof Circular Connector UL94V-0 85C 4A 48VAC 60VDC
PDF
/
Buying Options
Total Price: USD $43.45
Unit Price: USD $43.4456
≥1 USD $43.4456
≥10 USD $39.97312
≥100 USD $36.93184
≥500 USD $35.19384
≥1000 USD $35.000698
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Tin
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Zinc Die Cast
Housing Material Polyamide
Insert Material Polyamide (PA66), Nylon 6/6, Halogen Free
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series SACC
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Distributor
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Shielding Shielded
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Finish Nickel
Cable Opening 0.197 ~ 0.382 (5.00mm ~ 9.70mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP65, Water Resistant, Waterproof
