1412248
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

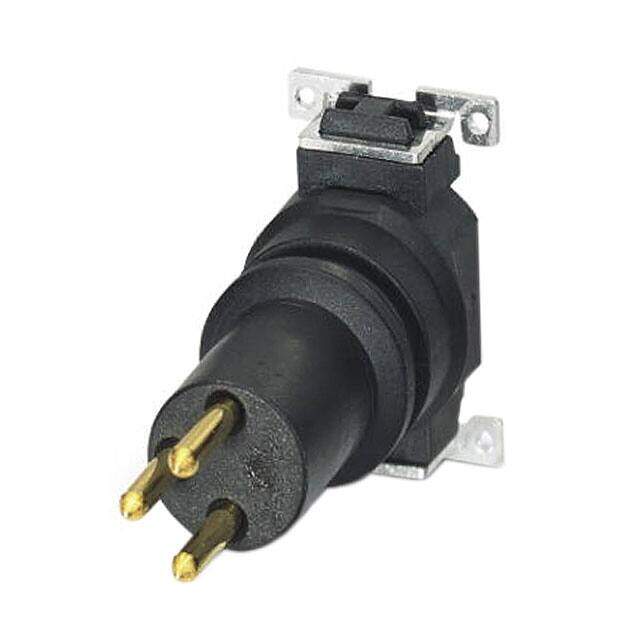

CONN CIRCULAR PLUG 3 POS SMD
PDF
/
Buying Options
Total Price: USD $3.31
Unit Price: USD $3.31462
≥1 USD $3.31462
≥10 USD $3.127
≥100 USD $2.95
Inventory: 558
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Surface Mount
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2014
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Male Pins
Number of Positions 3
Voltage - Rated 50VAC 60VDC
Contact Finish - Mating Gold
Current Rating (Amps) 3A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M8-3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
