1412240
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

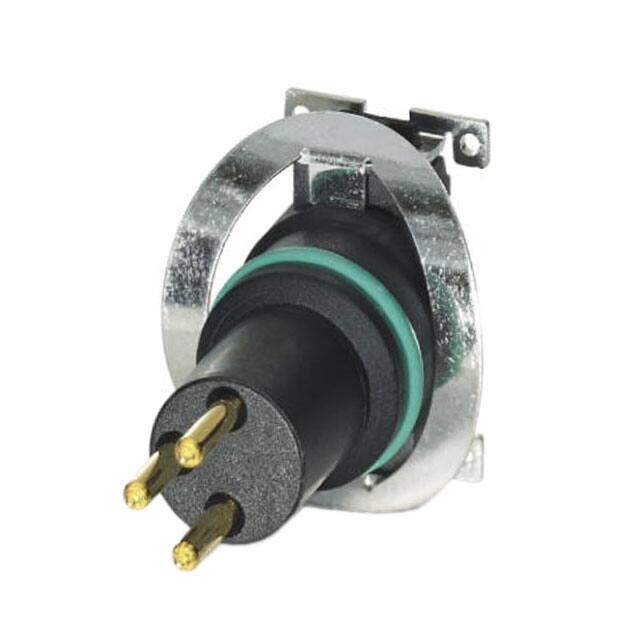

CONN MALE INSERT 3POS GOLD SLDR
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.96631
≥1 USD $4.96631
≥10 USD $4.6852
≥100 USD $4.42
Inventory: 570
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M8-3
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Current Rating (Amps) 3A
Contact Finish - Mating Gold
Voltage - Rated 50VAC 60VDC
Number of Positions 3
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Published 2015
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insert Material Polyamide (PA), Nylon
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
