1412222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

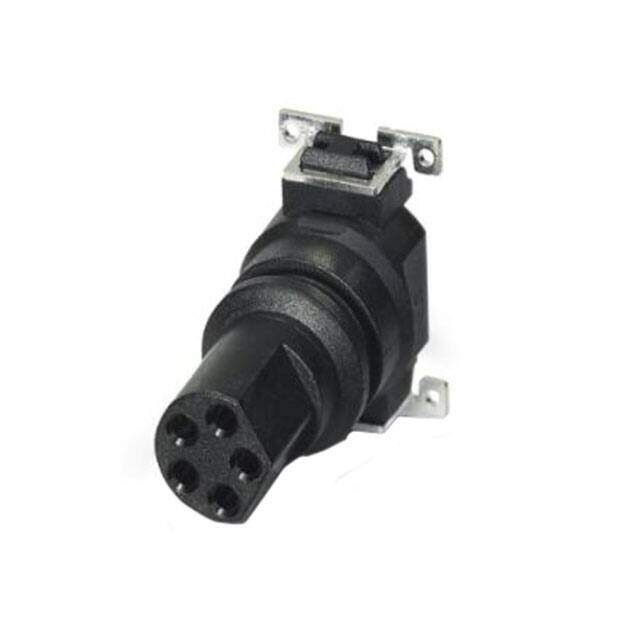

CONN FMALE INSERT 5POS SOLDER
PDF
/
Buying Options
Total Price: USD $4.66
Unit Price: USD $4.66294
≥1 USD $4.66294
≥10 USD $4.399
≥100 USD $4.15
Inventory: 673
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert M8-5
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation B
Current Rating (Amps) 3A
Contact Finish - Mating Gold
Voltage - Rated 30VAC/DC
Number of Positions 5
Connector Type Insert, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Published 2016
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Insert Material Polyamide (PA), Nylon
Mounting Type Surface Mount
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
