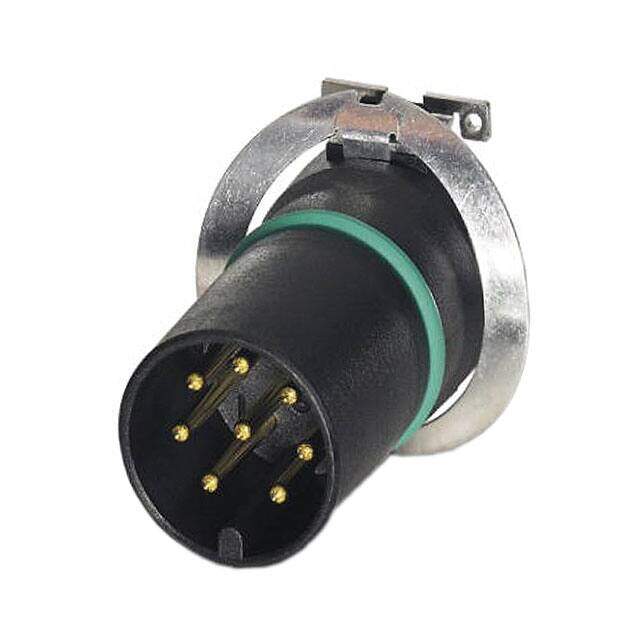

1412014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN CIRCULAR PLUG 8 POS SMD
PDF
/
Buying Options
Total Price: USD $8.12
Unit Price: USD $8.12363
≥1 USD $8.12363
≥10 USD $7.6638
≥100 USD $7.23
≥500 USD $6.82075
Inventory: 638
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Body/Shell Style PLUG
Backshell Type SOLID
Empty Shell NO
Shell Size - Insert M12-8
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation A
Total Number of Contacts 8
Current Rating (Amps) 2A
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated 30V
Number of Positions 8
Connector Type Insert, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Insert Only, Requires Shell
Series SACC
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Insert Material Polyamide (PA), Nylon
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 8 Weeks
