1412001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

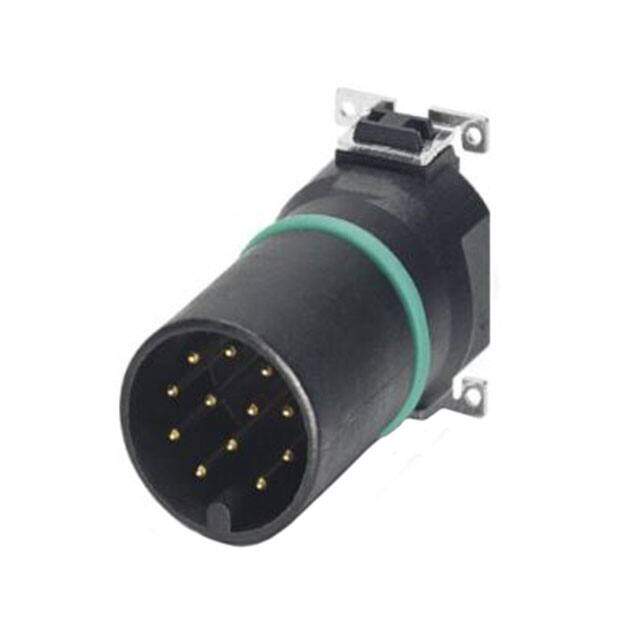

CONN MALE INSERT 12POS SOLDER
PDF
/
Buying Options
Total Price: USD $12.94
Unit Price: USD $12.94387
≥1 USD $12.94387
≥10 USD $12.2112
≥100 USD $11.52
Inventory: 410
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2016
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Male Pins
Number of Positions 12
Voltage - Rated 30V
Contact Finish - Mating Gold
Current Rating (Amps) 1.5A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M12-12
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
