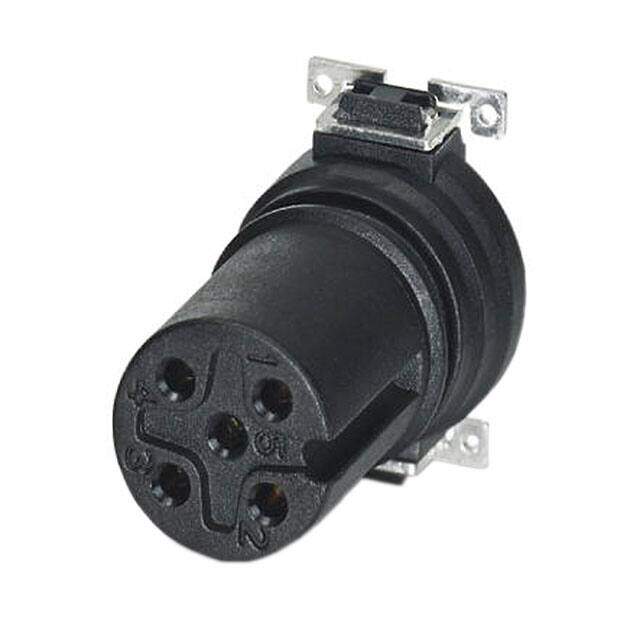

1411974
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN FMALE INSERT 4POS SOLDER
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.6517
≥1 USD $3.6517
≥10 USD $3.445
≥100 USD $3.25
≥500 USD $3.06604
Inventory: 829
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mount Surface Mount
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2014
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 4
Voltage - Rated 250V
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M12-4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
