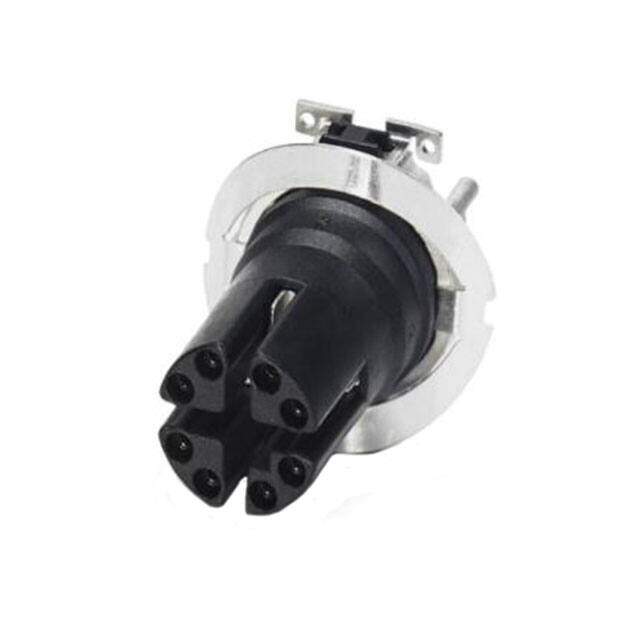

1411964
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN FMALE INSERT 8POS SOLDER
PDF
/
Buying Options
Total Price: USD $14.3
Unit Price: USD $14.3
≥1 USD $14.3
≥10 USD $13.67784
≥100 USD $13.304896
≥500 USD $12.434488
≥1000 USD $11.439683
≥3000 USD $10.569275
Inventory: 99
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Zinc
Mounting Type Surface Mount
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2016
Series SACC
Feature Board Guide, Insert Only, Requires Shell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Insert, Female Sockets
Number of Positions 8
Voltage - Rated 50VAC 60VDC
Contact Finish - Mating Gold
Current Rating (Amps) 0.5A
Orientation X
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Shell Size - Insert M12-8
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
